Models' HPD-16 HSS/P, HPD-22Q HSS/P & HPD-26Q HSS/P Hydraulic Skid Steer Mount

Models' HPD-16 HSS/P, HPD-22Q HSS/P & HPD-26Q HSS/P Hydraulic Skid Steer Mount Parts List

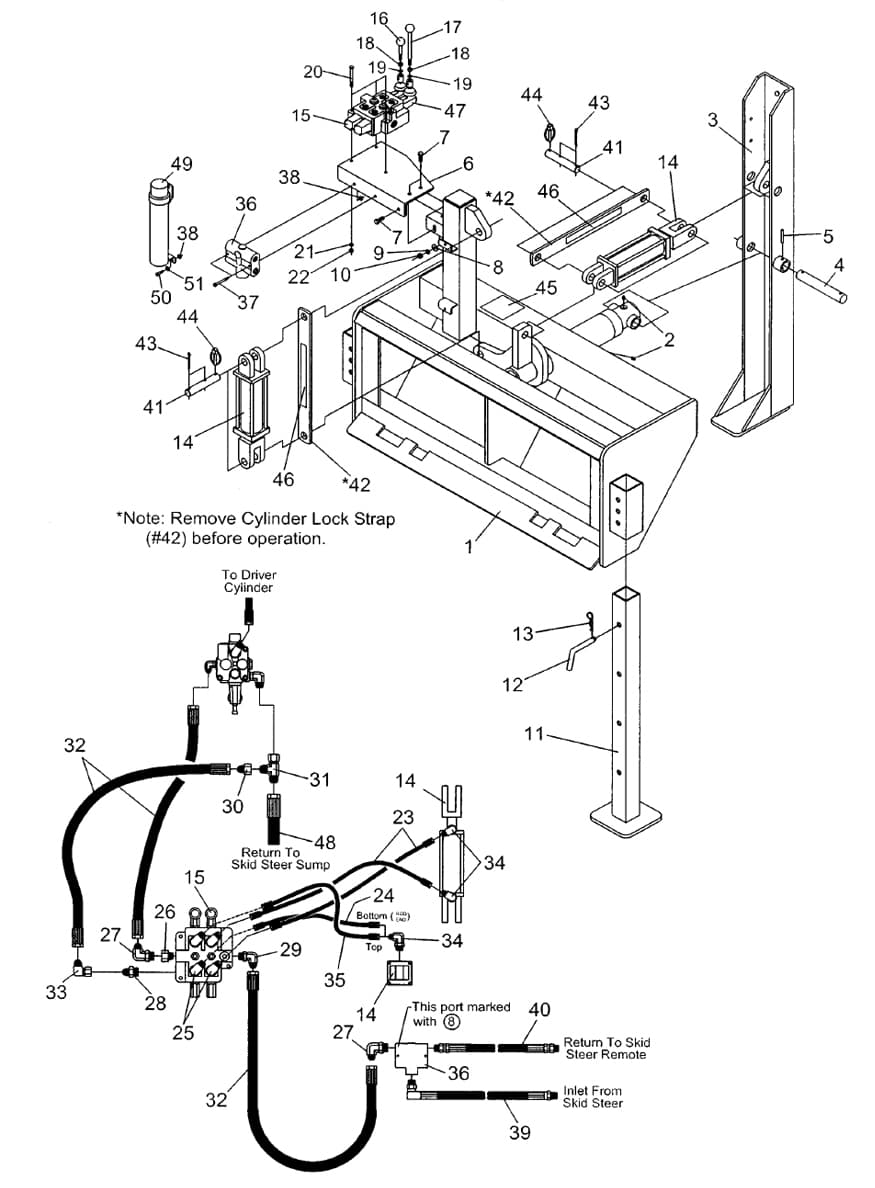

Models' HPD-16 HSS/P, HPD-22Q HSS/P & HPD-26Q HSS/P Hydraulic Skid Steer Mount Diagram

Models' HPD-16 HSS/P, HPD-22Q HSS/P & HPD-26Q HSS/P Hydraulic Skid Steer Mount Specifications

Ref #

Part #

Description

# Reqd

1

814605

Skid Steer Mount Weldment

1

2

2504049

Drive Zerk, 5/16"

2

3

814771

Support Channel Weldment w/Foot

1

4

830334

Lift Pin, 1-1/4" x 8"

1

5

2504070

Roll Pin, 5/16" x 2"

1

6

814672

Valve Mount (2 Spool)

1

7

2503011

Bolt, 3/8"-16NC x 1" Hex Head Gr. 2

3

8

2501004

Washer, 3/8" Flat

3

9

2502008

Washer, 3/8" Springlock

3

10

2500004

Nut, 3/8"-16NC Full Hex

3

11

814687

Stand Weldment

2

12

343180

Stand Pin

2

13

590187

Hair Clip Pin, (AK-2704)

2

14

2504258

Hydraulic Cylinder, 3 x 6

2

15

815085

Valve, 2-Spool

1

16

815087

Handle, Valve (Short)

1

17

815088

Handle, Valve (Long)

1

18

2500088

Nut, M8 Hex

2

19

2502023

Washer, External Star 8mm

2

20

2503098

Bolt, 5/16"-18NC x 2 1/2" Hex Head Gr. 2

3

21

2502011

Washer, 5/16" Springlock

3

22

2500011

Nut, 5/16"-18NC Full Hex

3

23

2505756

Hydraulic Hose, 1/4" ID x 36"

2

24

2505755

Hydraulic Hose, 1/4" ID x 30"

1

25

2505681

90° Elbow, 3/4"-16 ORB Male / 9/16" -18 JIC Male

4

26

815086

Power Beyond Sleeve (1.415 Hex AF)

1

815094

Power Beyond Sleeve (1.285 Hex AF)

27

2505748

90° Elbow, 7/8"-14 ORB Male / 3/4" -16 JIC Male

1

28

2505746

Connector, 3/4"-16 JIC Male to 7/8" -14 ORB Male

1

29

2505737

90° Elbow, 3/4"-16 ORB Male / 3/4" -16 JIC Male

1

30

2505745

Reducer Bushing, 3/4" to 1/2"

1

31

2505747

Swivel Tee 1 1/16" -12 JIC (2) Male (1) Female

1

32

2505752

Hydraulic Hose, 3/8" ID x 36"

2

33

2505736

90° Elbow, 3/4"-16 JIC Male / 3/4" -16 JIC Female

1

34

2505751

90° Elbow 3/4" ORB Male / 9/16" JIC Male w/Orifice

4

35

2505754

Hydraulic Hose, 1/4" ID x 24"

1

36

2505761

Priority Flow Divider Valve

1

37

2503249

Bolt 1/4" -2-NC x 2 1/4" Hex Head Gr. 2

2

38

2500008

Nut 1/4" -20NC Hex Whiz Flange

4

39

2505775

Hydraulic Hose 3/4" ID x 48" w/90° Elbow

1

40

2505776

Hydraulic Hose 3/4" ID x 48"

1

41

814758

Pin, Special Cylinder

4

42

814759

Strap, Cylinder Lock

2

43

2504068

Pin, Cotter 1/4" x 1-3/4"

8

44

590034

Linch Pin, 1/4" (AK-61)

4

45

101122

Safety Sign - Warning (Hi-Pressure)

1

46

101202

Safety Sign - Cylinder Strap

1

47

815091

Valve Operator

2

48

2505764

Hydraulic Hose, 1" ID x 216"

1

49

2504225

Manual Holder, Plastic

1

50

2503116

Bolt 1/4" -20NC x 1" Hex Head Gr. 2

2

51

2501006

Washer 1/4" Flat

2

N/S

2505544

Tie Wrap

12

N/S

101313

Safety Sign - Warning - Property Latched

1
