Worksaver

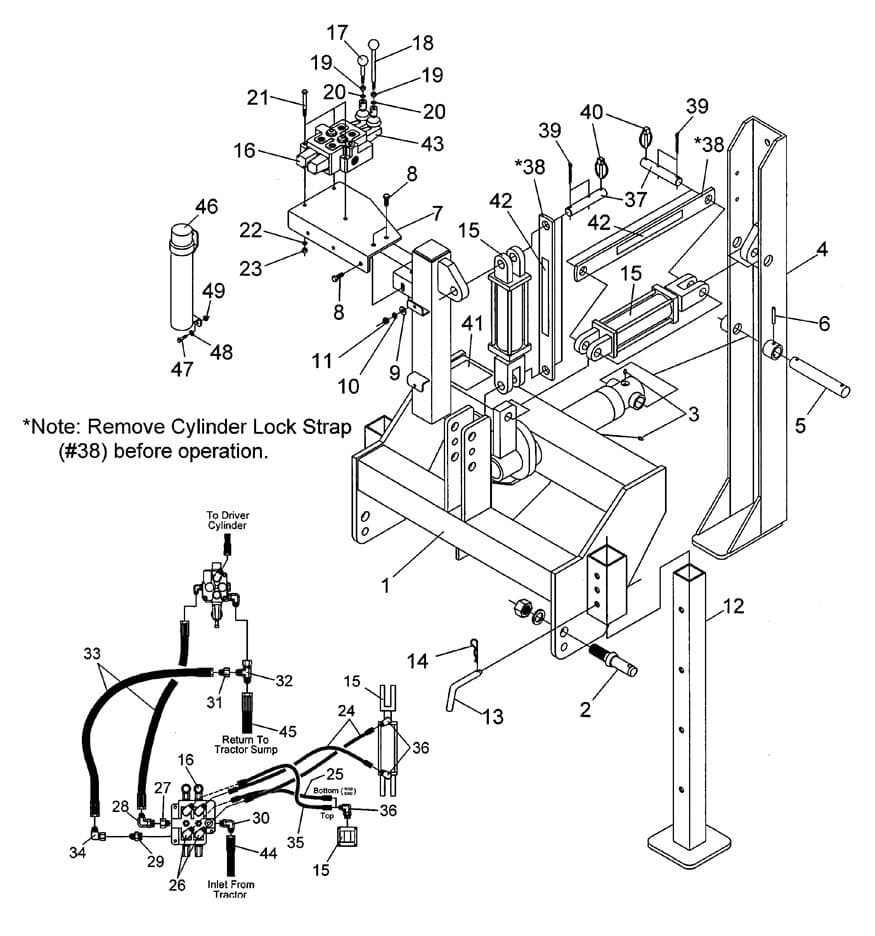

Model SHC Hydraulic Center Mount Parts List

Model SHC Hydraulic Center Mount Specifications

Ref #

Part #

Description

# Reqd

1

814695

Center Mount Weldment

1

2

590159

Draw Pin, (AK-4120)

2

3

2504049

Drive Zerk, 5/16"

2

4

814771

Support Channel Weldment w/Foot

1

5

830334

Lift Pin, 1-1/4" x 8"

1

6

2504070

Roll Pin, 5/16" x 2"

1

7

814672

Valve Mount

1

8

2503011

Bolt, 3/8"-16NC x 1" Hex Head Gr. 2

3

9

2501004

Washer, 3/8" Flat

3

10

2502008

Washer, 3/8" Springlock

3

11

2500004

Nut, 3/8"-16NC Full Hex

3

12

814687

Stand Weldment

2

13

343180

Adjustment Pin

2

14

590187

Hair Clip Pin, (AK-2704)

2

15

2504258

Hydraulic Cylinder, 3 x 6

2

16

815085

Valve, 2-Spool

1

17

815087

Handle, Valve (Short)

1

18

815088

Handle, Valve (Long)

1

19

2500088

Nut, M8 Hex

2

20

2502023

Washer, External Star 8mm

2

21

2503098

Bolt, 5/16"-18NC x 2 1/2" Hex Head Gr. 2

3

22

2502011

Washer, 5/16" Springlock

3

23

2500011

Nut, 5/16"-18NC Full Hex

3

24

2505756

Hydraulic Hose, 1/4" ID x 36"

2

25

2505755

Hydraulic Hose, 1/4" ID x 30"

1

26

2505681

90° Elbow, 3/4"-16 ORB Male / 9/16" -18 JIC Male

4

27

815086

Power Beyond Sleeve (1.415 Hex AF)

1

815094

Power Beyond Sleeve (1.285 Hex AF)

28

2505748

90° Elbow, 7/8"-14 ORB Male / 3/4" -16 JIC Male

1

29

2505746

Connector, 3/4"-16 JIC Male to 7/8" -14 ORB Male

1

30

2505737

90° Elbow, 3/4"-16 ORB Male / 3/4" -16 JIC Male

1

31

2505745

Reducer Bushing, 3/4" to 1/2"

1

32

2505747

Swivel Tee 1 1/16" -12 JIC (2) Male (1) Female

1

33

2505752

Hydraulic Hose, 3/8" ID x 36"

2

34

2505736

90° Elbow, 3/4"-16 JIC Male / 3/4" -16 JIC Female

1

35

2505754

Hydraulic Hose, 1/4" ID x 24"

1

36

2505751

90° Elbow 3/4" ORB Male / 9/16" JIC Male w/Orifice

4

37

814758

Pin, Special Cylinder

4

38

814759

Strap, Cylinder Lock

2

39

2504068

Pin, Cotter 1/4" x 1-3/4"

8

40

590034

Linch Pin, 1/4" (AK-61)

4

41

101122

Safety Sign - Warning (Hi-Pressure)

1

42

101202

Safety Sign - Cylinder Strap

1

43

815091

Valve Operator

2

44

2505744

Hydraulic Hose, 1/2" ID x 60"

1

45

2505742

Hydraulic Hose, 1" ID x 96"

1

46

2504225

Manual Holder, Plastic

1

47

2503116

Bolt 1/4" -20NC x 1" Hex Head Gr. 2

2

48

2501006

Washer 1/4" Flat

2

49

2500008

Nut 1/4" -20NC Hex Whiz Flange

2
