Model HPD-22Q Hydraulic Post Driver

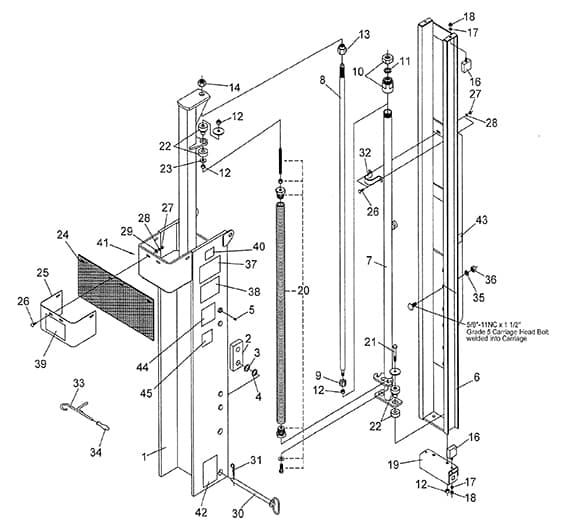

Model HPD-22Q Hydraulic Post Driver Parts List
Model HPD-22Q Hydraulic Post Driver Specifications
Ref #
Part #
Description
# Reqd
1
815242
Driving Ram Weldment
1
2
814549
Guide Block
4
3
2504132
Machinery Bushing, 1"ID x 18 Ga.
VAR.
4
2504110
Machinery Bushing, 1"ID x 14 Ga.
VAR.
5
2504049
Drive Zerk, 5/16"
2
6
815235
Carriage Weldment
1
815240
Complete Cylinder Assembly (Items #7 - #14)
1
7
815239
Tube, Hydraulic Cylinder
1
8
815204
Rod, Hydraulic Cylinder
1
9
814422
Rod Guide, Hydraulic Cylinder
1
10
815170
End Cap Assembly w/ Rod Seal
1
11
814523
Rod Seal (only)
1
12
2500054
Nut, 1/2"-13NC Stamplock Hex
5
13
815205
Special Step Nut 7/8"-14NF
1
14
2500017
Nut 7/8"-14NF Full Hex
1
15
2500057
Nut, 1"-14NF Nylock Hex
1
16
814426
Bumper, Urethane
4
17
2502008
Washer, 3/8" Springlock
4
18
2500004
Nut, 3/8"-16NC Full Hex
4
19
815231
Transport Lock Weldment
1
20
815234
Spring Assembly
2
21
2503264
Bolt, 1/2"-13NC x 3-1/2" Hex head Gr. 5
2
22
815246
Mount, Vibration - w/Washer
4
23
2501003
Washer 1/2" Flat
2
24
814533
Rubber Guard
1
25
814626
Guard Retainer
2
26
2503266
Bolt, 5/16"-18NC x 1-1/4" Carriage Head
6
27
2500011
Nut, 5/16"-18NC Full Hex
6
28
2502011
Washer, 5/16" Springlock
6
29
2501012
Washer, 5/16" Flat
4
30
814536
Pin, Transport Lock
1
31
590188
Hair Clip Pin, 5/32" (AK-2705)
1
32
814543
Cylinder Stabilizer Strap
1
33
814476
Post Holder w/Handle
1
34
2504129
Handle, Post Holder
1
35
2502007
Washer, 5/8" Springlock
6
36
2500013
Nut, 5/8"-11NC Full Hex
6
37
101056
Safety Sign - Safety Instructions
1
38
101057
Safety Sign - Warning (Set Brake)
1
39
101058
Safety Sign - Warning (Avoid Injury)
1
40
101078
Safety Sign - Caution (Safety Glasses)
1
41
101027
Safety Sign - Warning (Stand Clear)
1
42
101318
Safety Sign - Do Not Raise
1
43
101319
Safety Sign - Red Line
1
44
101122
Safety Sign - Warning (High Pressure)
1
45
101358
Safety Sign - 811 (Know What's Below)
1
