Worksaver

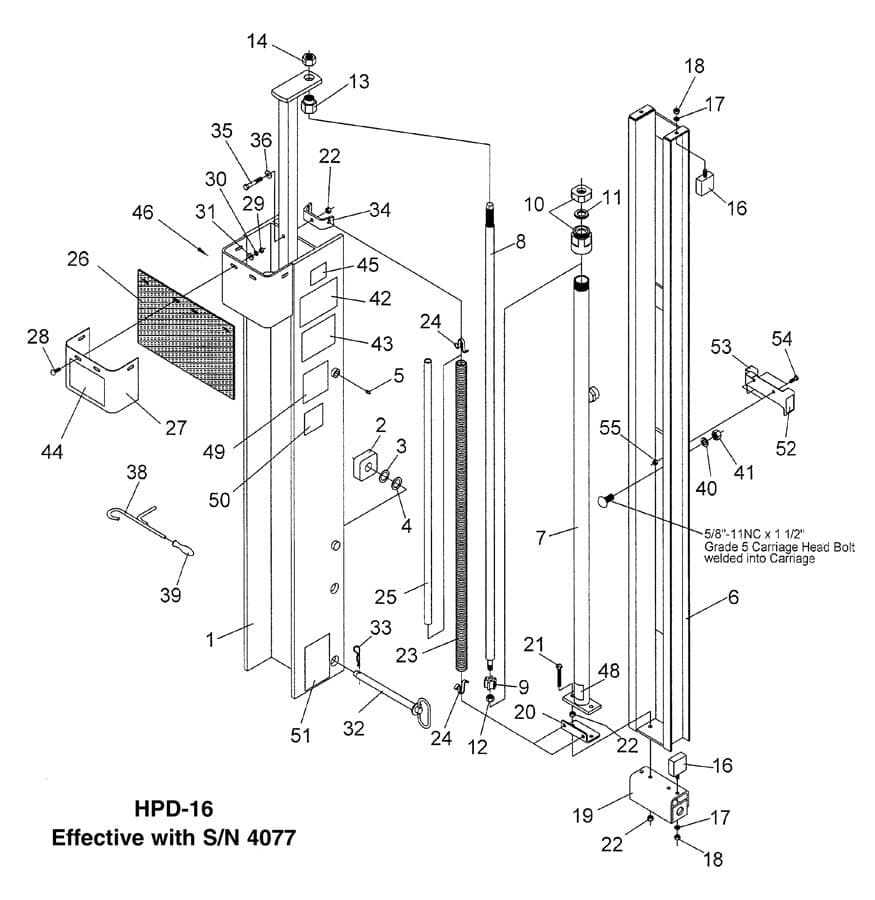

Model HPD-16 Hydraulic Post Driver Parts List

Model HPD-16 Hydraulic Post Driver Specifications

Ref #

Part #

Description

# Reqd

1

814401

Driving Ram Weldment

1

2

814551

Guide Block

4

3

2504132

Machinery Bushing, 1" ID x 18 Ga.

Var.

4

2504110

Machinery Bushing, 1" ID x 14 Ga.

Var.

5

2504049

Drive Zerk 5/16"

2

6

814411

Carriage Weldment

1

815165

Complete Cylinder Assembly (Items #7-#14)

1

7

814417

Tube, Hydraulic Cylinder

1

8

815166

Rod, Hydraulic Cylinder

1

9

814422

Rod Guide, Hydraulic Cylinder

1

10

815170

End Cap Assembly w/Rod Seal

1

11

814523

Rod Seal (only)

1

12

2500054

Nut, 1/2"-13NC Stamplock Hex

1

13

815205

Special Step Nut 7/8" -14NF

1

14

2500017

Nut 7/8" -14NF Full Hex

1

16

814426

Bumper, Urethane

4

17

2502008

Washer, 3/8" Springlock

4

18

2500004

Nut, 3/8"-16NC Full Hex

4

19

814427

Transport Lock Weldment

1

20

814430

Lower Spring Bracket

1

21

2503198

Bolt, 3/8"-16NC x 2 1/2" Gr.8 Full Thread

2

22

2500055

Nut, 3/8"-16NC Stamplock Hex

5

23

814431

Spring, Driving Ram

2

24

814432

Clip, Spring

4

25

814581

Pipe, Plastic Stabilizing

2

26

814433

Rubber Guard

1

27

814629

Guard Retainer

1

28

2503266

Bolt, 5/16"-18NC x 1 1/4" Carriage Head

4

29

2500011

Nut, 5/16"-18NC Full Hex

4

30

2502011

Washer, 5/16" Springlock

4

31

2501012

Washer, 5/16" Flat

4

32

814488

Pin, Transport Lock

1

33

590188

Hair Clip Pin, 5/32" (AK-2705)

1

34

814408

Upper Spring Bracket

1

35

2503201

Bolt, 3/8"-16NC x 2 1/4" Gr.5 Hex Head

1

36

2501004

Washer, 3/8" Flat

1

38

814476

Post Holder w/Handle

1

39

2504129

Handle, Post Holder

1

40

2502007

Washer, 5/8" Springlock

6

41

2500013

Nut, 5/8"-11NC Full Hex

6

42

101056

Safety Sign - Safety Instructions

1

43

101057

Safety Sign - Warning (Set Brake)

1

44

101058

Safety Sign - Warning (Avoid Injury)

1

45

101078

Safety Sign - Caution (Safety Glasses)

1

46

101027

Safety Sign - Warning (Stand Clear)

1

48

101080

Safety Sign - Notice (1/2 Turn Loose)

1

49

101122

Safety Sign - Warning (Hi Pressure)

1

50

101358

Safety Sign - 811 (Know What's Below)

1

51

101318

Safety Sign - Do Not Raise

1

52

101319

Safety Sign - Red Line

1

53

815277

Holder, Limit Decal

1

54

2503038

Bolt 5/16" -18NC Hex Head Gr. 2

2

55

2500046

Nut 5/16" -18 NC Hex Nylock

2
