Worksaver

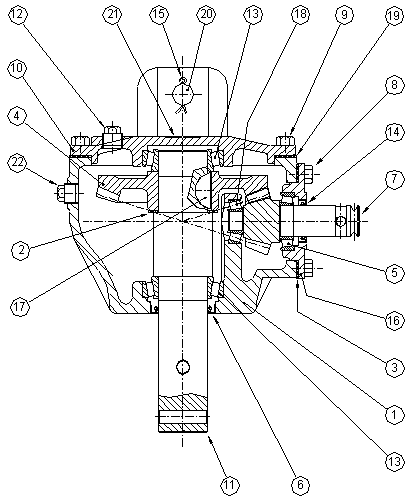

Model 925 Post Hole Digger Gearbox Parts List

Ref #

Part #

Description

# Reqd

1

706142

Housing

1

2

706143

Output Shaft

1

3

706144

Output Bearing Spacer

1

5

706123

Gear Adjusting Shom, 0.30

Var.

6

706124

Gear Adjusting Shim, 0.50

Var.

7

706145

Output Gear, 44 Tooth

1

8

706146

Output Cap Gasket, 0.10

Var.

9

706147

Output Cap Gasket, 0.25

Var.

11

706128

#10 Lockwasher

8

12

706129

M10 x 1.5 x 30 Cap Screw

8

13

706130

1/2" Pipe Plug

2

14

706096

Hanger Shaft

1

15

706097

Cotter Pin

2

16

706148

Hanger Cap

1

17

706132

Retaining Ring

1

18

706133

Retaining Ring

1

19

706134

Seal Adapter

1

20

706135

Input Seal

1

21

706149

11 Tooth Pinion & Shaft

1

22

706137

Bearing Spacer

1

23

706138

207K Ball Bearing

2

24

706139

Bearing Assembly 7210

2

25

706140

Retaining Ring

1

26

706141

Output Seal, 70 x 50 x 12

1
