Model 924 Hydraulic Post Hole Digger

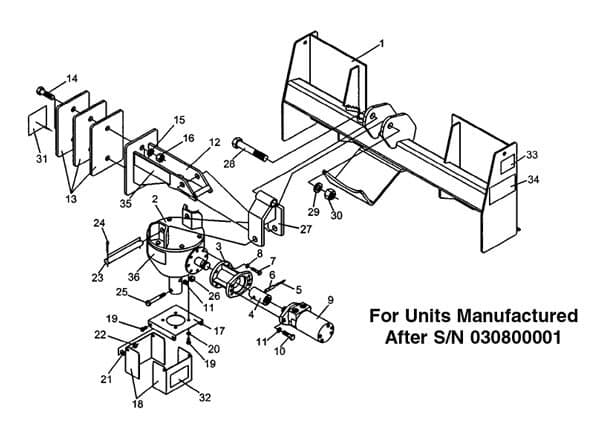

Model 924 Hydraulic Post Hole Digger Parts List
Model 924 Hydraulic Post Hole Digger Specifications
Ref #
Part #
Description
# Reqd
1
702131
Main Frame Weldment
1
2
706405
Gearbox
1
702141
Flange Assembly (Includes Items #3 thru #7)
1
3
702142
Extension
1
4
702143
Bushing, Splined
1
5
702144
Pin 6 x 45 Spring
1
6
702145
Pin 10 x 45 Spring
1
7
702148
Bolt, M10 x 40 Hex Head Gr. 8.8
4
8
2502019
Washer, 10mm Springlock
4
9
2505706
Hydraulic Motor (914HC)
1
2505704
Hydraulic Motor (924HC)
1
10
2503265
Bolt, 1/2"-13NC x 1 3/4" Hex Head Gr. 5
2
11
2502002
Washer 1/2" Springlock
4
12
702056
Counterweight Bracket
1
13
702058
Endplate, Counterweight
3
14
2503085
Bolt, 3/4"-10NC x 2 1/2" Hex Head Gr. 5
2
15
2502001
Washer, 3/4" Springlock
2
16
2500002
Nut, 3/4"-10NC Full Hex
2
17
706091
Shield Base
1
18
706094
Flip Down Shield
2
19
2503030
Bolt, 3/8"-16NC x 3/4" Hex Head Gr. 2
8
20
2502008
Washer, 3/8" Springlock
4
21
2501004
Washer, 3/8" Flat
4
22
2500055
Nut, 3/8"-16NC Hex Stamplock
4
23
706096
Gearbox Pin
1
24
706097
Cotter Pin, 3/16" x 2"
1
25
2503109
Bolt, 1/2"-13NC x 3 1/2" Hex Head Gr. 2
2
26
2500003
Nut, 1/2"-13NC Full Hex
2
27
702040
Pivot Bracket Weldment
1
28
2503257
Bolt 1"-8NC x 6" Hex Head Gr. 5
1
29
2502009
Washer 1" Springlock
1
30
2500001
Nut 1"-8NC Full Hex
1
31
101122
Safety Sign - Warning (Hi Pressure)
1
32
101186
Safety Sign - Warning (Shields)
2
33
101015
Safety Sign - PHD Instructions
1
34
101032
Safety Sign - Danger (PH Digger)
1
35
101130
Safety Sign - Danger (Rotating Parts)
1
36
101188
Safety Sign - Gearbox Notice
1
