Worksaver

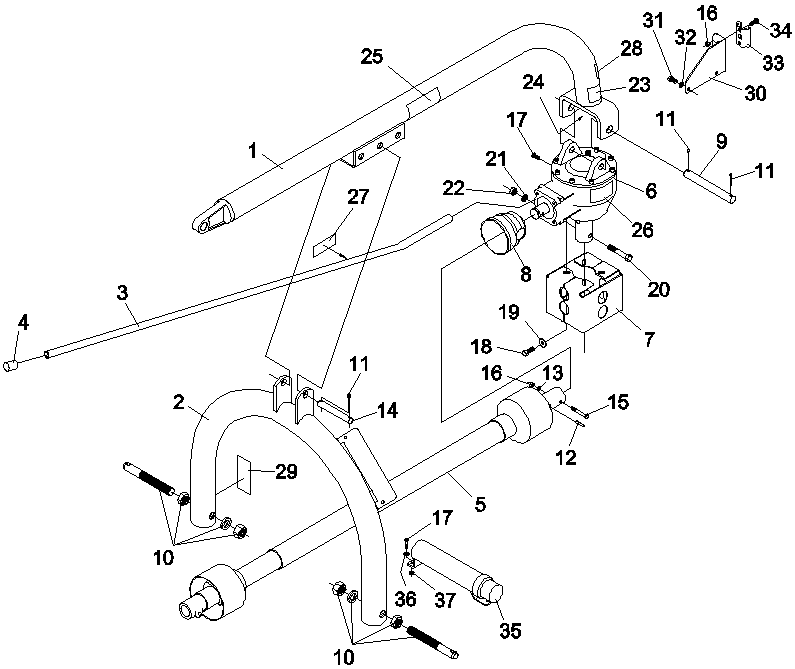

Model 500 Post Hole Digger Parts List

Ref #

Part #

Description

# Reqd

1

3814002

Boom Weldment

1

2

3814007

Yoke Weldment

1

3

171038

Handle

1

4

170547

Caplug, Handle

1

5

170970

PTO Shaft Complete

1

6

171040

Gearbox (Comer)

1

7

170926

Gearbox Output Shield (Pair)

1

8

170995

Gearbox Input Shield

1

9

3814014

Gearbox Hanger Pin

1

10

590071

Lift Pin w/Hardware (AK-479)

2

11

2504121

Cotter Pin 3/16" x 1 1/2"

4

12

2504011

Roll Pin 3/16" x 1 1/4" (Prior to January 2017)

1

12

2504044

Roll Pin 1/4" x 2" (Used After January 2017)

13

2502011

Washer 5/16" Springlock

1

14

3814019

Boom Adjustment Pin

1

15

2503098

Bolt 5/16" - 18NC x 2 1/2" Hex Head Gr. 2

1

16

2500011

Nut 5/16" - 18NC Full Hex

3

17

2503094

Bolt 5/16" - 18NC x 3/4" Hex Head Gr. 2

1

18

2503304

Bolt M8 x 16mm Hex Head Gr. 8.8

4

19

2501006

Washer 1/4" Flat

4

20

2503012

Bolt 1/2" - 13NC x 3" Hex Head Gr. 2

2

21

2502002

Washer 1/2" Springlock

2

22

2500003

Nut 1/2"- 13NC Full Hex

2

23

101130

Safety Sign - Danger (Rotating Parts)

1

24

101015

Safety Sign - PHD Instructions

1

25

101032

Safety Sign - Danger (Keep Clear)

1

26

101188

Safety Sign - Gearbox Notice

1

27

101200

Safety Sign - Notice (Handle)

1

28

101358

Safety Sign - 811 (Call Before You Dig)

1

29

101209

Safety Sign - Red Reflector 2" x 4 1/2"

2

30

176012

Bracket, SMV Sign

1

31

2503030

Bolt 3/8" - 16NC x 3/4" Hex Head Gr. 2

2

32

250006

Washer 3/8" Springlock

2

33

2504319

Socket, SMV Sign

1

34

2503110

Bolt 5/16" - 18NC x 1" Carriage Head Gr.2

2

35

2504225

Manual Holder, Plastic

1

36

2501012

Washer 5/16" Flat

2

37

2500060

Nut 5/16" - 18NC Hex Whiz Flange

2
