Worksaver

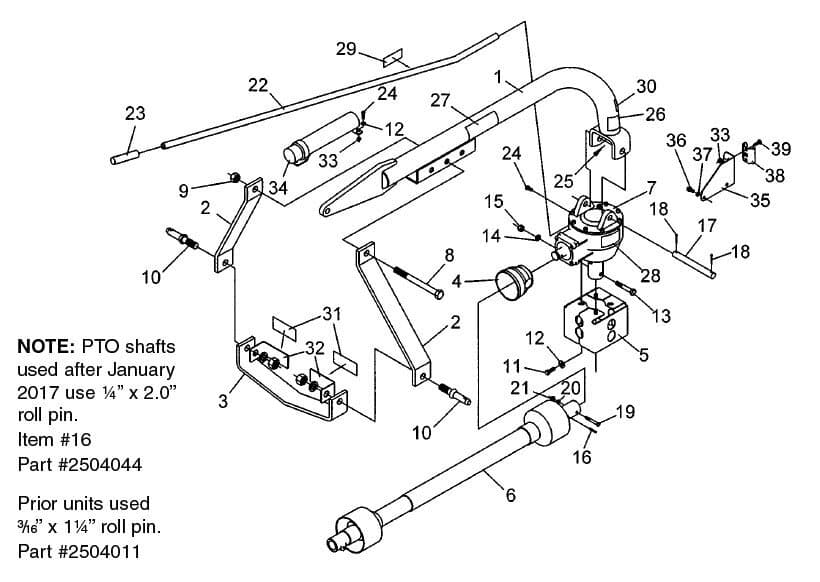

Model 300 Post Hole Digger Parts List

Ref #

Part #

Description

# Reqd.

1

170551

Boom Weldment

1

2

170557

Side Bar

2

3

170558

Lower Bar

1

4

170995

Input Guard

1

5

170926

Gearbox Output Shield (Pair)

1

6

170970

PTO Shaft Complete

1

7

171040

Gearbox (Comer)

1

8

2503068

Bolt 3/4" -10NC x 5 1/2" Hex Head Gr. 2

1

9

2500037

Nut 3/4" -10NC Nylock Hex

1

10

590108

AK-576 Draw Pin

2

11

2503304

Bolt M8 x 16MM Hex Head Gr. 8.8

4

12

2501012

Washer 5/16" Medium Flat

6

13

2503012

Bolt 1/2" - 13NC x 3" Hex Head Gr. 2

2

14

2502002

Washer 1/2" Spring Lock

2

15

2500003

Nut 1/2" -13NC Full Hex

2

16

2504044

Roll Pin 1/4" x 2.0"

1

17

3814014

Pin, Gearbox Hitch

1

18

2504121

Cotter Pin 3/16" x 1 1/2"

2

19

2503098

Bolt 5/16" -18NC x 2 1/2" Hex Head Gr. 2

1

20

2502011

Washer 5/16" Springlock

1

21

2500011

Nut 5/16"-18NC Full Hex

1

22

171039

Handle

1

23

170547

Handle Grip

1

24

2503094

Bolt 5/16"- 18NC x 3/4" Hex Head Gr. 2

3

25

101015

Safety Sign (PHD Instructions)

1

26

101130

Safety Sign - Danger (Rotating Parts)

1

27

101032

Safety Sign - Danger (PH Digger)

1

28

101188

Safety Sign - Gearbox Notice

1

29

101200

Safety Sign - Notice (Handle)

1

30

101358

Safety Sign -811 (Call Before You Dig)

1

31

101209

Safety Sign - Red Reflector 2" x 4 1/2"

2

32

176009

Bracket, Reflector

2

33

2500060

Nut 5/16" - 18NC Whiz Flange Hex

4

34

2504225

Manual Holder, Plastic

1

35

176012

Bracket, SMV Sign

1

36

2503030

Bolt 3/8" - 16NC x 3/4" Hex Head Gr. 2

2

37

2502008

Washer 3/8"Springlock

2

38

2504319

Socket, SMV Sign

1

39

2503113

Bolt 5/16" - 18NC x 3/4" Carriage Head Gr. 2

2
