Hydraulic Post Hole Digger Gearbox

Hydraulic Post Hole Digger Gearbox Parts List

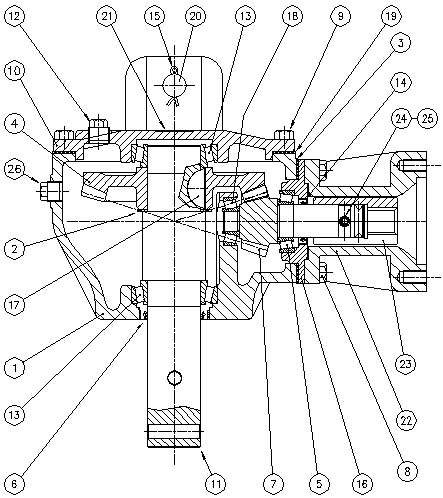

Hydraulic Post Hole Digger Gearbox Diagram

Hydraulic Post Hole Digger Gearbox Specifications

Ref #

Part #

Description

# Reqd

706405

Gearbox Assembly Only (Less Flange Assembly)

1

702141

Flange Assembly (Items #8 & #22 - #25

1

1

N/A

Casting & Machining

1

2

706406

Shim Kit (51.1 x 63)

1

3

706407

Gasket Kit (81.5 x 118)

1

4

706408

Crown Gear Z35 M5.08

1

5

706409

Roller Bearing LM67048 - LM67010

1

6

706410

Dust Lip 50.8 x 66.92 x 7.92

1

7

7064110

Pinion Z11 M5.08

1

8

702148

Bolt, M10 x 40 Hex Head Gr. 8.8

4

9

702149

Bolt, M10 x 30 Hex Head Gr. 8.8)

6

10

702150

Top Plate

1

11

706412

Output Shaft

1

12

702147

1/2" Gas Solid Plug

1

13

706413

Roller Bearing LM104949 - LM104911

2

14

706414

Dust Lip 31.75 x 44.5 x 7.92

1

15

702153

Cotter Pin 5 x 40

2

16

706415

Cover

1

17

706416

Woodruff Key 7.94 x 16.28

1

18

706417

Roller Bearing LM11910 - LM11949

1

19

706418

Gasket Kit (190 x 224.5)

1

20

706419

Pivot Shaft

1

21

N/A

Name Plate

1

22

702142

Extension

1

23

702143

Bushing Grooved

1

24

702144

Pin 6 x 45 DIN1481

1

25

702145

Pin 10 x 45 DIN1481

1

26

702146

3/8" Gas Solid Plug

1
