Hydraulic Control Valve & Mounting Bracket For HPD-16, HPD-22Q and HPD-26Q SCH Models

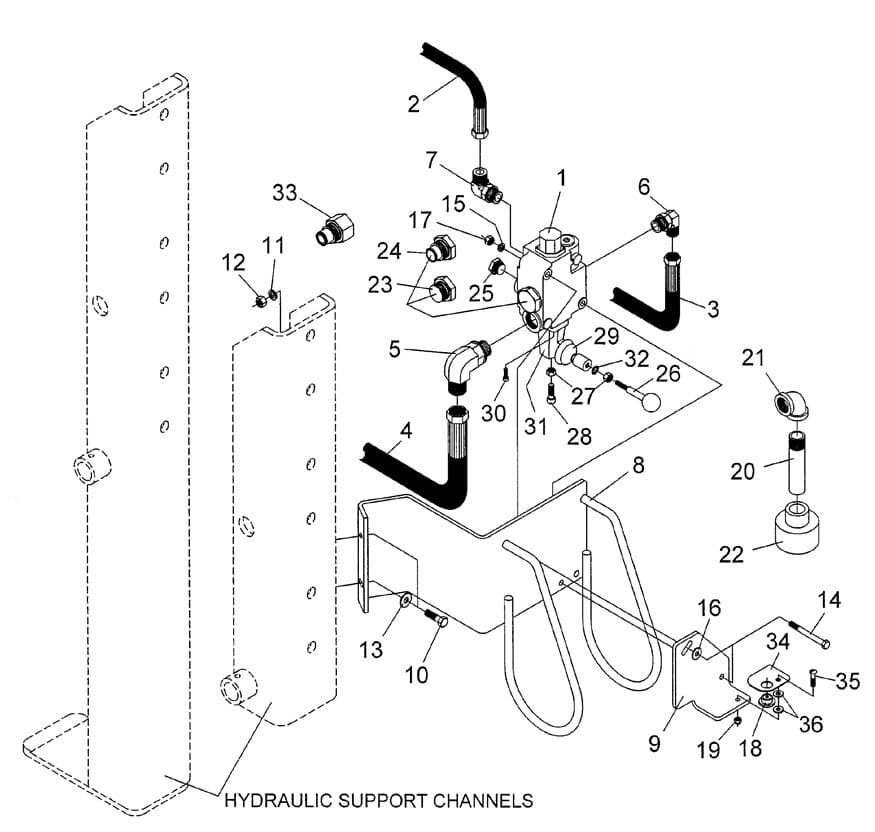

Hydraulic Control Valve & Mounting Bracket For HPD-16, HPD-22Q and HPD-26Q SCH Models Parts List
Hydraulic Control Valve & Mounting Bracket For HPD-16, HPD-22Q and HPD-26Q SCH Models Specifications
Ref #
Part #
Description
# Reqd
1
815080
Valve, Hydraulic
1
2
2505743
Hose, Cylinder 3/4" ID x 24" Double Braid
1
3
2505744
Hose, Pressure 1/2" ID x 60" Double Braid
1
4
2505742
Hose, Return 1" ID x 96" Single Braid
1
5
2505750
Elbow, 1 1/16" -12 JIC to 7/8" -14 O-Ring
1
6
2505737
Elbow, 3/4" -16 JIC to 3/4" -16 O-Ring
1
7
2505749
Elbow, 1 1/16" -12 JIC to 3/4" -16 O-Ring
1
8
814647
Bracket, Valve Mount
1
9
814643
Plate, Level Mount
1
10
2503020
Bolt, 3/8"-16NC x 1-1/4" Gr.2 Hex Head
2
11
2502008
Washer, 3/8" Springlock
2
12
2500004
Nut, 3/8"-16NC Full Hex
2
13
2501004
Washer, 3/8" Flat
1
14
2503114
Bolt, 5/16"-18NC x 3" Hex Head Gr. 2
2
15
2502011
Washer, 5/16" Springlock
2
16
2501012
Washer, 5/16" Flat
1
17
2500011
Nut, 5/16"-18NC Full Hex
2
18
814486
Level, Bubble
1
19
2500006
Nut, 1/4"-20NC Nylock Hex
1
814496
Return Adapter Assembly (Includes #20-#22)
1
20
814498
Center Tube
1
21
2504139
Elbow, 3/4" NPT 90° Black
1
22
815100
Adapter Shield
1
23
815081
Open Center Plug
1
24
815082
Closed Center Plug
1
25
815083
Plug, 3/4"-16 O-Ring (SAE 8)
1
26
815087
Handle, Valve
1
27
2500088
Nut, M8 Hex
2
28
2503296
Screw, Limit M8 x 25 Socket Head Gr. 8.8
1
29
815103
Rubber Boot
1
30
2503337
Screw, M5m x 0.8 x 16mm Socket Head Gr. 12.9
1
31
815089
Valve Operator (Includes #27 & #30)
1
32
2502023
Washer, External Star 8mm
1
33
815086
(Option) Power Beyond Adapter - 1.415 Hex AF
1
34
815209
Plate, Level Clamp
1
35
2503009
Bolt, 1/4" -20NC x 1" Round Head
1
36
2501006
Washer 1/4" Medium Flat
2
