Adjustable Base Mounting Plate Assembly For HPD-16 & HPD-22Q Models

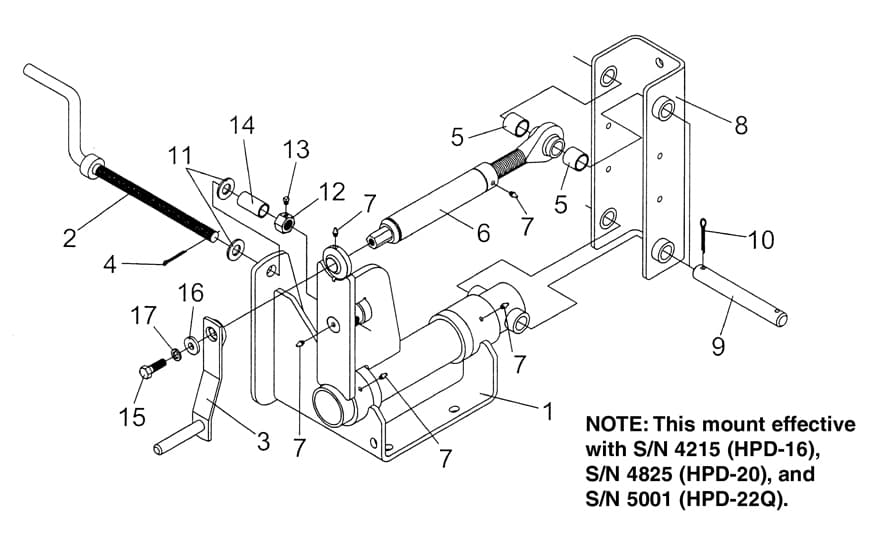

Adjustable Base Mounting Plate Assembly For HPD-16 & HPD-22Q Models Parts List
Adjustable Base Mounting Plate Assembly For HPD-16 & HPD-22Q Models Specifications
Ref #
Part #
Description
# Reqd
1
815252
Manual Base Mount Weldment
1
2
814450
Side Tilt Crank (3/4"-10NC Threads)
1
3
815263
Handle Weldment, Fore & Aft
1
4
2504015
Cotter Pin, 1/8" x 1-1/2"
1
5
815275
Spacer, Fore & Aft Link
2
6
815266
Barrel Weldment
1
7
2504049
Drive Zerk, 5/16"
5
8
814460
Support Channel Weldment
1
9
830309
Lift Pin, 1" Dia. x 8" Lg.
2
10
2504068
Cotter Pin, 1/4" x 1-3/4"
4
11
2504149
Machinery Bushing, 3/4" ID x 10 Ga.
2
12
814425
Nut, 3/4"-10NC Full Hex (Drilled & Tapped)
1
13
2503196
Set Screw, 1/4"-20NC x 1/4"
1
14
590027
Toplink Bushing, (AK-54)
1
15
2503350
Bolt 1/2" -13NC x 1-1/2" Hex Head (Coated)
1
16
2501039
Washer 1/2" Flat, Extra Thick
1
17
2502002
Washer 1/2" Spring Lock
1
