714HC & 724HC Hydraulic Post Hole Digger

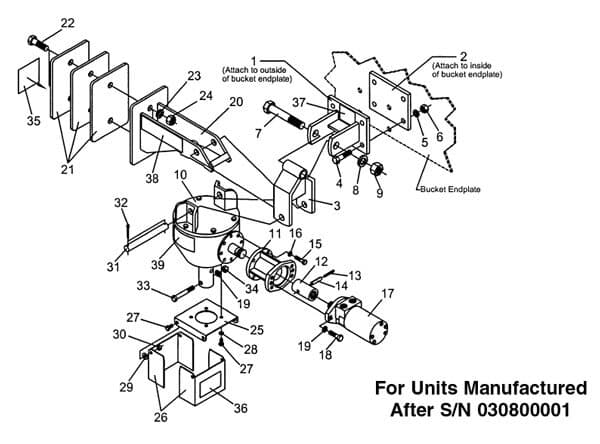

714HC & 724HC Hydraulic Post Hole Digger Parts List
714HC & 724HC Hydraulic Post Hole Digger Specifications
Ref #
Part #
Description
# Reqd
1
830316
Mounting Bracket Weldment
1
2
830210
Mounting Plate
1
3
702040
Pivot Bracket Weldment
1
4
2503088
Bolt, 5/8"-11NC x 2 1/2" Hex Head Gr. 5
4
5
2502007
Washer, 5/8" Springlock
4
6
2500013
Nut, 5/8"-11NC Full Hex
4
7
2503257
Bolt, 1"-8NC x 6" Hex Head Gr. 5
1
8
2502009
Washer, 1" Springlock
1
9
2500001
Nut, 1"-8NC Full Hex
1
10
706405
Gearbox
1
702141
Flange Assembly (Includes Items #11 thru #15)
1
11
702142
Extension
1
12
702143
Bushing, Splined
1
13
702144
Pin 6 x 45, Spring
1
14
702145
Pin 10 x 45, Spring
1
15
702148
Bolt, M10 x 40 Hex Head Gr. 8.8
4
16
2502019
Washer, 10mm Springlock
4
17
2505706
Hydraulic Motor (714HC)
1
2505704
Hydraulic Motor (724HC)
1
18
2503265
Bolt, 1/2"-13NC x 1-3/4" Hex Head Gr. 5
2
19
2502002
Washer, 1/2" Springlock
4
20
702056
Counterweight Bracket
1
21
702058
Endplate, Counterweight
3
22
2503085
Bolt, 3/4"-10NC x 2 1/2" Hex Head Gr. 5
2
23
2502001
Washer, 3/4" Springlock
2
24
2500002
Nut, 3/4"-10NC Full Hex
2
25
706091
Shield Base
1
26
706094
Flip Down Shield
2
27
2503030
Bolt, 3/8"-16NC x 3/4" Hex Head Gr. 2
8
28
2502008
Washer 3/8" Springlock
4
29
2501004
Washer 3/8" Flat
4
30
2500055
Nut, 3/8"-16NC Hex Stamplock
4
31
706096
Gearbox Pin
1
32
706097
Cotter Pin 3/16" x 2"
2
33
2503109
Bolt, 1/2"-13NC x 3 1/2" Hex Head Gr. 2
2
34
2500003
Nut, 1/2"-13NC Full Hex
2
35
101122
Safety Sign - Warning (Hi Pressure)
1
36
101186
Safety Sign - Warning (Shields)
2
37
101015
Safety Sign - PHD Instructions
1
38
101130
Safety Sign - Danger (Rotating Parts)
1
39
101188
Safety Sign - Gearbox Notice
1
