614HC & 624HC Hydraulic Post Hole Digger

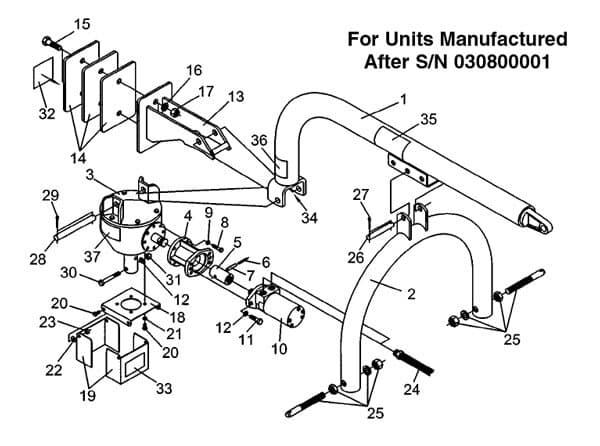

614HC & 624HC Hydraulic Post Hole Digger Parts List
614HC & 624HC Hydraulic Post Hole Digger Specifications
Ref #
Part #
Description
# Reqd
1
705001
Boom Weldment, Heavy Duty
1
2
3814007
Yoke Weldment
1
3
706405
Gearbox
1
702141
Flange Assembly (Includes Items #4 thru #8)
1
4
702142
Extension
1
5
702143
Bushing, Splined
1
6
702144
Pin 6 x 45, Spring
1
7
702145
Pin 10 x 45, Spring
1
8
702148
Bolt, M10 x 40 Hex Head Gr. 8.8
4
9
2502019
Washer, 10mm Springlock
4
10
2505706
Hydraulic Motor (614HC)
1
2505704
Hydraulic Motor (624HC)
1
11
2503265
Bolt, 1/2"-13NC x 1 3/4" Hex Head Gr. 5
2
12
2502002
Washer, 1/2" Springlock
4
13
702056
Counterweight Bracket
1
14
702058
Endplate, Counterweight
3
15
2503085
Bolt, 3/4"-10NC x 2 1/2" Hex Head Gr. 5
2
16
2502001
Washer, 3/4" Springlock
2
17
2500002
Nut, 3/4"-10NC Full Hex
2
18
706091
Shield Base
1
19
706094
Flip Down Shield
2
20
2503030
Bolt, 3/8"-16NC x 3/4" Hex Head Gr. 2
8
21
2502008
Washer, 3/8" Springlock
4
22
2501004
Washer, 3/8" Flat
4
23
2500055
Nut, 3/8"-16NC Hex Stamplock
4
24
2505576
Hydraulic Hose 1/2" x 60"
2
25
590071
Hitch Pin, (AK-479)
2
26
3814019
Boom Adjustment Pin
1
27
2504121
Cotter Pin 3/16" x 1 1/2"
2
28
706096
Gearbox Pin
1
29
706097
Cotter Pin 3/16" x 2"
2
30
2503109
Bolt, 1/2"-13NC x 3 1/2" Hex Head Gr. 2
2
31
2500003
Nut, 1/2"-13NC Full Hex
2
32
101122
Safety Sign - Warning (Hi Pressure)
1
33
101186
Safety Sign - Warning (Shields)
2
34
101015
Safety Sign - PHD Instructions
1
35
101032
Safety Sign - Danger (PH Digger)
1
36
101130
Safety Sign - Danger (Rotating Parts)
1
37
101188
Safety Sign - Gearbox Notice
1
