Worksaver

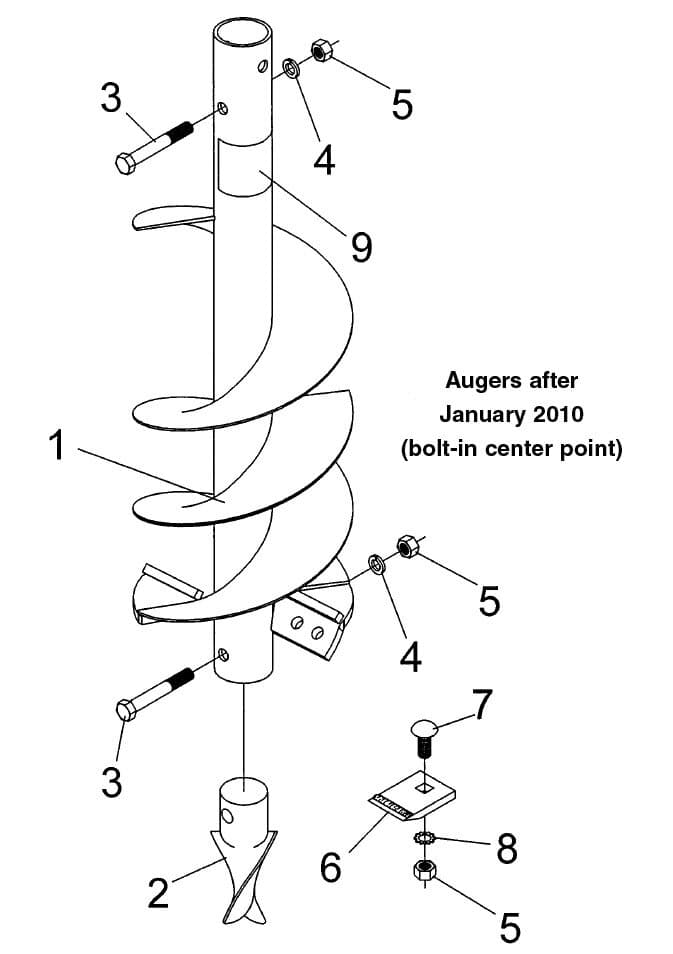

30" Long Augers Parts List

Ref #

Part #

Description

# Reqd.

1

170576

6" Dia. Single Flight Auger (30" Long)

1

170567

9" Dia. Single Flight Auger (30" Long)

1

170572

12" Dia. Single Flight Auger (30" Long)

1

2

170430

Fishtail Auger Point (Bolt-in)

1

3

2503012

Bolt, 1/2" - 13 NC x 3" Hex Head Gr. 2

3

4

2502002

Washer, 1/2" Spring Lock

3

5

2500003

Nut, 1/2"-13NC Full Hex

Var.

6

706021

Red Claw Digger Teeth

Var.

7

2503166

Bolt, 1/2" - 13NC x 1 1/4" Carriage Head

Var.

8

2502003

1/2" External Star Lockwasher

Var.

9

101131

Decal - Danger (Guard Missing)

1
