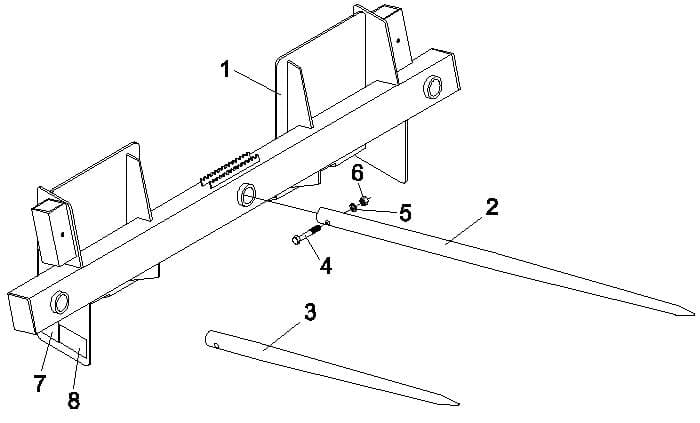

Skid Steer Bale Attachments SSRB-330 Parts List
Skid Steer Bale Attachments SSRB-330 Parts List
Ref. #
Part #
Description
# Req.
1
831085
Main Frame Weldment (SSB-330/340)
1
2
830928
Spear, Bolt-in 47 1/4" (SSB-340)
3
3
830924
Spear, Bolt-in 31 1/2" (SSRB-330)
3
4
2503012
Bolt 1/2" - 13NC x 3" Hex Head Gr. 2
3
5
2502002
Washer 1/2" Springlock
3
6
2500003
Nut 1/2" - 13NC Full Hex
3
7
101277
Safety Sign - Warning (Read Manual)
1
8
101127
Safety Sign - Warning (Insert Spears)
1
