Worksaver

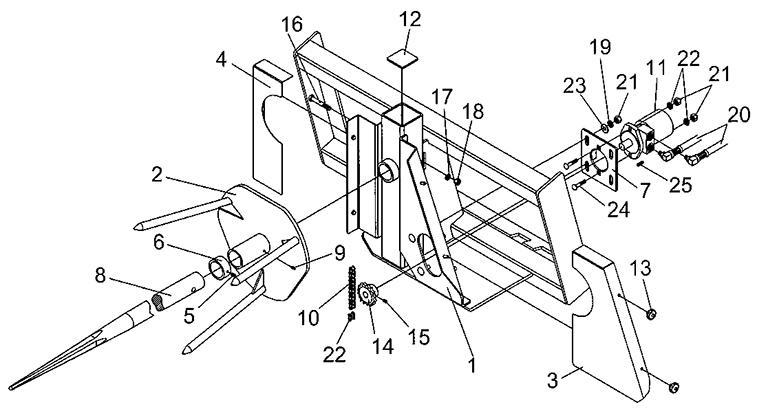

Round Bale Feeder SSSO-908 Parts List

Ref. #

Part #

Description

# Req.

1

831031

Main Weldment - Spin Off

1

2

831010

Spinner Weldment - Spin Off

1

3

830281

Chain Shield - Spin Off (RH)

1

4

830283

Chain Shield Weldment - Spin Off (LH)

1

5

2503316

Set Screw, Socket 1/2"-13NC x 1/2"

1

6

831004

Collar - Spin Off

1

7

830286

Hydraulic Motor Mount - Spin Off

1

8

831268

Forged Spear - Spin Off

1

9

2504049

Drive Zerk, 5/16"

1

10

830967

Roller Chain, #50 x 43-3/4" (69 Pitches)

1

11

2505702

Hydraulic Motor (Parker)

1

N/S

2505703

Seal Kit for Parker Hydraulic Motor (Item #11)

1

12

2504300

Plastic Cap

1

13

2504220

Knob - Spin Off

4

14

830966

Sprocket - 50B12

1

15

2503057

Set Screw, Socket 5/16"-18NC x 1/2"

2

16

2503305

Bolt, 5/8"-11NC x 5" Hex Head Gr. 5

1

17

2502007

Washer, 5/8" Spring Lock

1

18

2500013

Nut, Hex 5/8"-11NC

1

19

2502002

Washer, 1/2" Spring Lock

6

20

2504214

Hydraulic Hose, 1/2" I.D. x 108"

2

21

2500003

Nut, Hex 1/2"-13NC

6

22

480458

Master Link, #50 Chain

1

23

2501003

Washer, 1/2" Medium Flat

4

24

2503102

Bolt, Carriage 1/2"-13NC x 1-1/2" Gr.5

2

25

2505646

Key, Square 1/4" x 1/4" x 1" Early Models

1

25

830963

Woodruff Key 0.25" X 1" Current Models

N/S

2505645

Seal kit for White Hydraulic Motor on Earlier Models

1

N/S

101270

Notice - Grease Zerk

1

N/S

101271

Safety Sign - Danger (Rotating Hay Spike)

1

N/S

101272

Safety Sign - Warning (Moving Chains and Sprocket)

1

N/S

101122

Safety Sign - Warning (High Pressure)

1

N/S

101277

Safety Sign - Warning (Instruction)

1
