Rotating Bale Hand Hydraulic Connection Diagram and Parts List
Rotating Bale Hand Hydraulic Connection Parts List

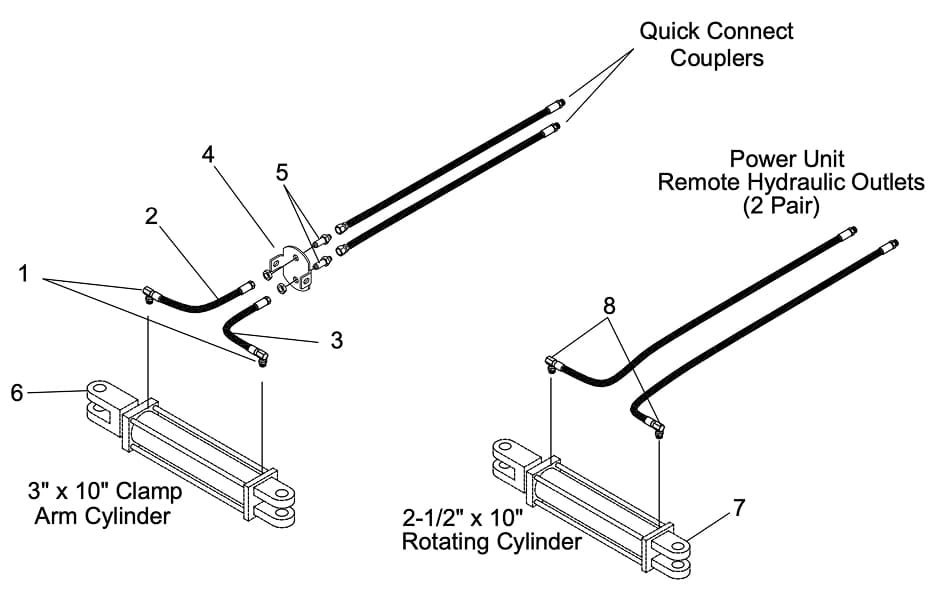

This is for Rotating Bale Hand Models for hydraulic connection for power units equipped with 2 pair remote hydraulic outlets.
Rotating Bale Hand Hydraulic Connection Parts List
Ref #
Part #
Description
# Req'd
1
2505682
90° Swivel Elbow 9/16"-18 to 9/16"-18
2
2
2505801
Hydraulic Hose 1/4" x 21"
1
3
2505802
Hydraulic Hose 1/4" x 25"
1
4
832378
Bulkhead Panel, Rotating Bale Hand
1
5
2505799
Bulkhead Union - 9/16"-18 to 9/16"-18
2
6
2504259
Hydraulic Cylinder 3 x 10
1
7
2504265
Hydraulic Cylinder 2 1/2 x 10
1
8
2505751
90° Swivel Elbow 9/16"-18 to 3/4"-16 w/Orifice
2
n/s
2505544
Toe Wra[
