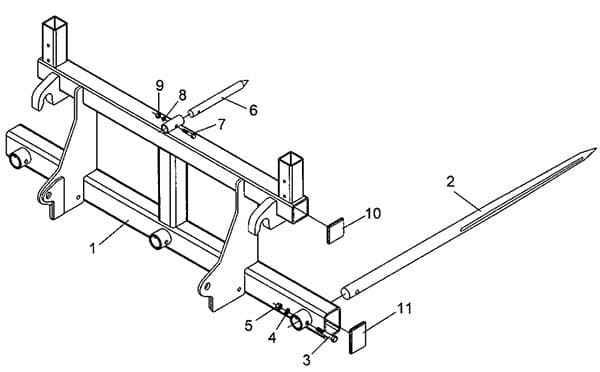

Euro/Global Integrated Frame Bale Spears ELB-330 and ELB-340 Parts List
Euro/Global Integrated Frame Bale Spears ELB-330 and ELB-340 Parts List
Ref. #
Part #
Description
# Req.
1
832366
ELB-330/340 Frame Weldment
1
2
830924
Forged Bolt-in Spear (31.50") ELB-330
3
830928
Forged Bolt-in Spear (31.50") ELB-340
3
3
2503012
Bolt 1/2" - 13NC x 3" Hex Head Gr.2
3
4
2502002
Washer 1/2" Spring Lock
3
5
2500003
Nut 1/2" -13NC Full Hex
3
6
830213
Balance Spike
1
7
2503120
Bolt 3/8" -16NC x 1-3/4" Hex Head Gr. 5
1
8
2502008
Washer 3/8" Spring Lock
1
9
2500004
Nut 3/8" -16NC Full Hex
1
10
2504308
Plastic Cap 3 x 3
2
11
2504313
Plastic Cap 3 x 4
2
N/S
101127
Safety Sign - Warning (Insert Spears)
1
N/S
101277
Safety Sign - Warning (Read Manual)
1
