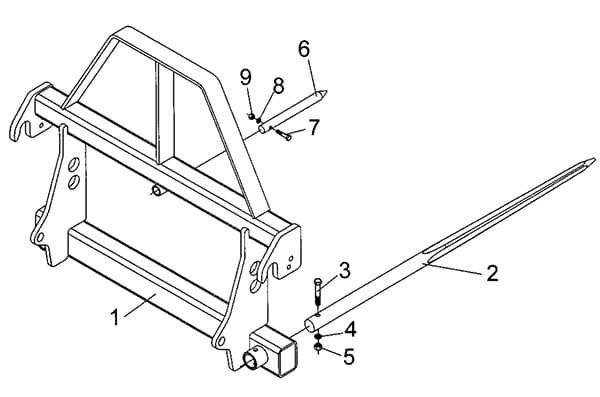

Euro/Global Integrated Frame Bale Spear ELB-3000 Parts List
Euro/Global Integrated Frame Bale Spear ELB-3000 Parts List
Ref. #
Part #
Description
# Req.
1
832196
Main Frame Weldment
1
2
830928
Forged Spear, Bolt-in (47.25")
2
3
2503012
Bolt 1/2" - 13NC x 3" Hex Head Gr.2
2
4
2502002
Washer 1/2" Spring Lock
2
5
2500003
Nut 1/2" -13NC Full Hex
2
6
830213
Balance Spike
1
7
2503120
Bolt 3/8" -16NC x 1-3/4" Hex Head Gr. 5
1
8
2502008
Washer 3/8" Spring Lock
1
9
2500004
Nut 3/8" -16NC Full Hex
1
N/S
101127
Safety Sign - Warning (Insert Spears)
1
N/S
101277
Safety Sign - Warning (Read Manual)
1
