Bucket Bale Attachments CBSF-3028 Parts List

Bucket Bale Attachments CBSF-3028 Parts List

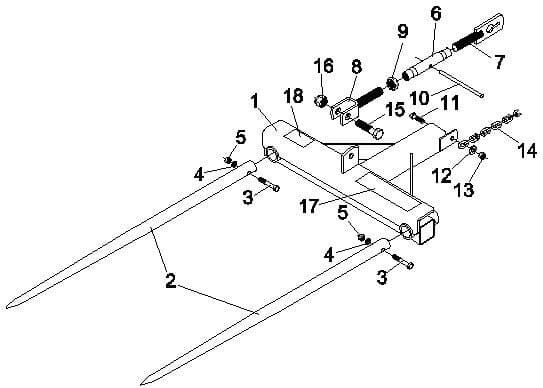

Bucket Bale Attachments CBSF-3028 Diagram

Ref. #

Part #

Description

# Req.

1

831925

Main Frame Weldment

1

2

830928

Spear, Bolt-in (47 1/4" Lg.)

2

3

2503012

Bolt 1/2" - 13NC x 3" Hex Head Grade 2

2

4

2502002

Washer 1/2" Springlock

2

5

2500003

Nut 1/2" - 13NC Full Hex

2

831195

Complete Turnbuckle Assembly (#6 thru #10)

1

6

590277

Barrel

1

7

830412

Threaded Stub - LH

1

8

831196

Threaded Stub - RH

1

9

2500024

Nut 1" - 8NC Jam Hex

1

10

590145

Handle

1

11

2503265

Bolt 1/2" - 13NC x 1 3/4" Hex Head Grade 5

1

12

2501003

Washer 1/2" Flat

1

13

2500039

Nut 1/2" - 13NC Hex Nylock

1

14

830406

Chain, 5/16" Proof Coil x 5 Ft.

1

15

2503024

Bolt 3/4" - 10NC x 3 1/2" Hex Head Grade 2

1

16

2500037

Nut 3/4" - 10NC Hex Nylock

1

17

101277

Safety Sign - Warning (Read Maual)

1

18

101127

Safety Sign - Warning (Insert Spears)

1
