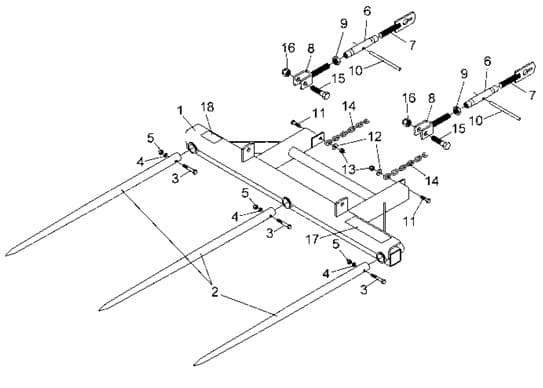

Bucket Bale Attachments CBSF-3028 Parts List
Bucket Bale Attachments CBSF-3028 Parts List
Ref. #
Part #
Description
# Req.
1
831956
Main Frame Weldment
1
2
830928
Spear, Bolt-in (47 1/4" Lg.)
3
3
2503012
Bolt 1/2" - 13NC x 3" Hex Head Grade 2
3
4
2502002
Washer 1/2" Springlock
3
5
2500003
Nut 1/2" - 13NC Full Hex
3

831195
Complete Turnbuckle Assembly (#6 thru #10)
2
6
590277
Barrel
2
7
830412
Threaded Stub - LH
2
8
831196
Threaded Stub - RH
2
9
2500024
Nut 1" - 8NC Jam Hex
2
10
590145
Handle
2
11
2503265
Bolt 1/2" - 13NC x 1 3/4" Hex Head Grade 5
2
12
2501003
Washer 1/2" Flat
2
13
2500039
Nut 1/2" - 13NC Hex Nylock
2
14
830406
Chain, 5/16" Proof Coil x 5 Ft.
2
15
2503024
Bolt 3/4" - 10NC x 3 1/2" Hex Head Grade 2
2
16
2500037
Nut 3/4" - 10NC Hex Nylock
2
17
101277
Safety Sign - Warning (Read Maual)
1
18
101127
Safety Sign - Warning (Insert Spears)
1
