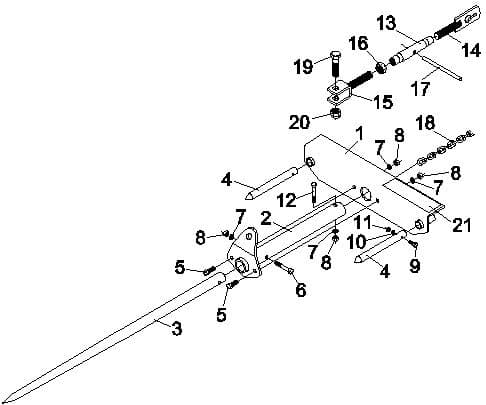

Bucket Bale Attachments CBSF-2000 Parts List
Bucket Bale Attachments CBSF-2000 Parts List
Ref. #
Part #
Description
# Req.
1
830181
Bucket Angle Weldment
1
2
830186
Tube/Flange Weldment
1
3
830928
Spear, Bolt-in (47 1/4" Lg.)
1
4
830213
Spike, Balance (1" Dia. X 10 13/16" Lg.)
2
5
2503145
Bolt 1/2" - 13NC x 1 1/2" Hex Head Grade 5
2
6
2503012
Bolt 1/2" - 13NC x 3" Hex Head Grade 2
1
7
2502002
Washer 1/2" Springlock
4
8
2500003
Nut 1/2" - 13NC Full Hex
4
9
2503120
Bolt 3/8" - 16NC x 1 3/4" Hex Head Grade 2
2
10
2502008
Washer 3/8" - 16NC Full Hex
2
11
2500004
Nut 3/8" - 16NC Full Hex
2
12
2503079
Bolt 1/2" - 13NC x 4" Hex Head Grade 2
1

831195
Turnbuckle Assembly (Items#13 thru #17)
1
13
590277
Barrel
1
14
830412
Threaded Stub - LH
1
15
831196
Threaded Stub - RH
1
16
2500024
Nut 1" - 8NC Hex Jam
1
17
590145
Handle
1
18
830406
Chain, 5/16" Proof Coil x 5 Ft.
1
19
2503024
Bolt 3/4" - 10NC x 3 1/2" Hex Head Grade 2
1
20
2500037
Nut 3/4" - 10NC Hex Nylock
1
21
101277
Safety Sign - Warning (Read Maual)
1
