Bale Clamping Attachments SSBH-2072-R Parts List
Bale Clamping Attachments SSBH-2072-R Parts List

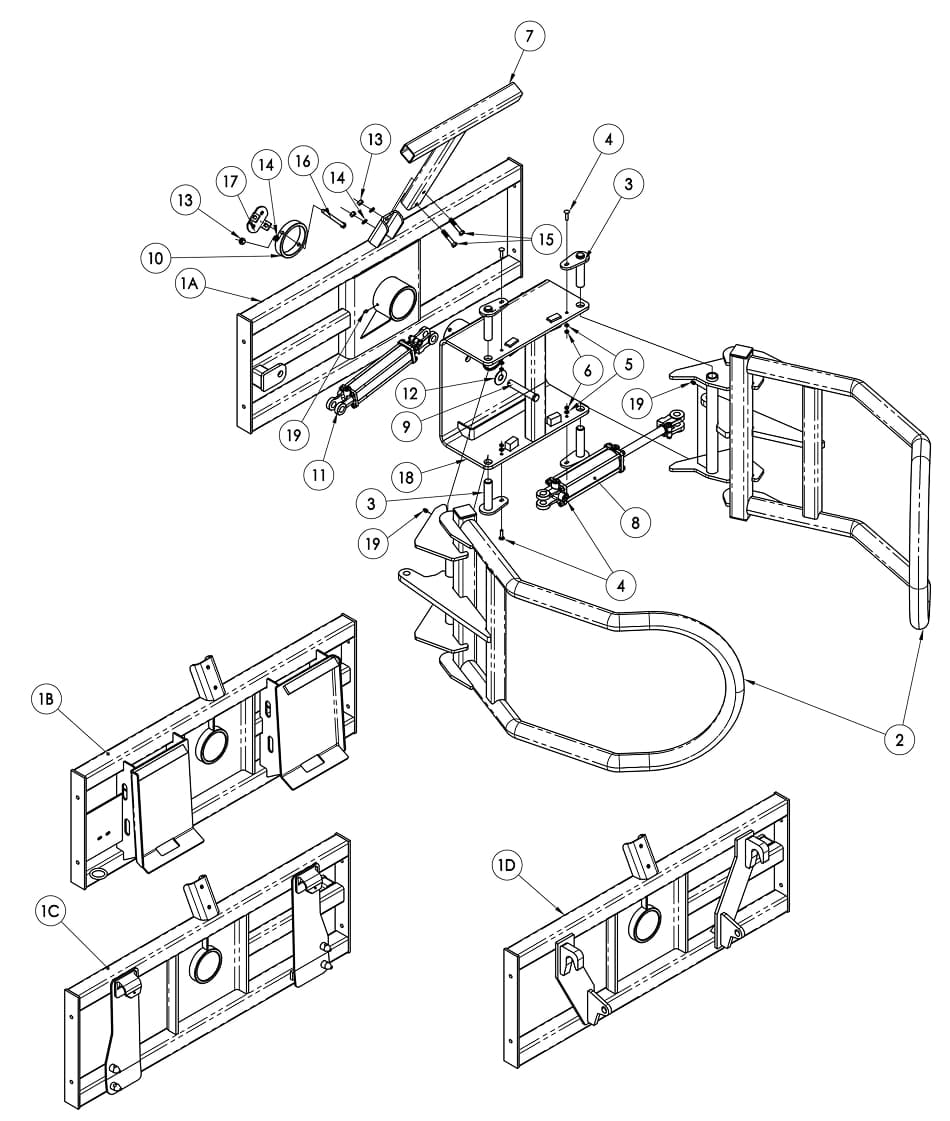

UBH-2072R - (2,200 Lb. Bale Hand)
SSBH-2072R - (2,200 Lb. Skid Steer Bale Hand)
Ref. #
Part #
Description
# Req.
1A
832993
Main Frame Weldment (UBH-2072R)
1
1B
832979
Main Frame Weldment (SSBH-2072R)
1
1C
832977
Main Frame Weldment (JDBH-2072R)
1
1D
832978
Main Frame Weldment (GLBH-2072R)
1
2
832970
Arm Weldment
2
3
832857
Pivot Pin Weldment
4
4
2503103
Bolt 3/8"-16NC x 1 1/2" Carriage Head Gr. 2
4
5
2502008
Washer 3/8" Springlock
4
6
2500004
Nut 3/8"-16NC Full Hex
4
7
834198
Backstop Weldment
1
8
2504259
Hydraulic Cylinder 3 x 10
1
9
832989
Pin, Cylinder Mount
1
10
832987
Collar, Spindle Lock
1
11
2504265
Hydraulic Cylinder 2 1/2 x 10
1
12
2501014
Washer 1" Medium Flat SAE
1
13
2500003
Nut 1/2"-13NC Full Hex
3
14
2502002
Washer 1/2" Springlock
3
15
2503012
Bolt 1/2"-13NC x 3" Hex Head Gr. 2
2
16
2503364
Bolt 1/2"-13NC x 7" Hex Head Gr. 5
1
17
832378
Bulkhead Panel, Rotating BH
1
18
832994
Frame, Rotating Head
1
19
2504049
Grease Zerk 5/16" Drive
6
