Bale Clamping Attachments SSBH-2072 Parts List
Bale Clamping Attachments SSBH-2072 Parts List

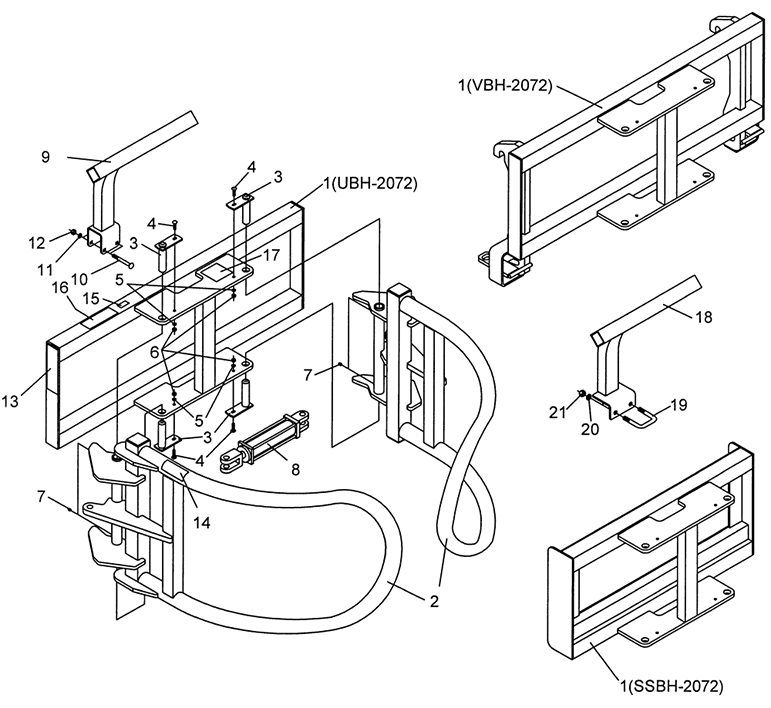

UBH-2072 - (2,200 Lb. Bale Hand)
SSBH-2072 - (2,200 Lb. Skid Steer Bale Hand)
Ref. #
Part #
Description
# Req.
1
832945
Main Frame Weldment (UBH-2072 only)
1
1
832961
Main Frame Weldment (VBH-2072 only)
1
1
832966
Main Frame Weldment (SSBH-2072 only)
1
2
832970
Arm Weldment
2
3
832857
Pivot Pin Weldment
4
4
2503103
Bolt, 3/8"-16NC x 1-1/2" Carriage Head Gr. 2
4
5
2502008
Washer, 3/8" Springlock
4
6
2500004
Nut, 3/8"-16NC Full Hex
4
7
2504049
Grease Zerk 5/16"
4
8
2504259
Hydraulic Cylinder 3" x 10"
1
9
832958
Backstop Weldment (UBH-2072 & VBH-2072 only)
1
10
2503217
Bolt, 1/2"-13NC x 4-1/2" Carriage Head (UBH-2072 & VBH-2072 only)
2
11
2502002
Washer, 1/2" Springlock
2
12
2500003
Nut, 1/2"-13NC Full Hex
2
13
101026
Safety Sign - Caution (Instructions)
1
14
101027
Safety Sign - Warning (Stand Clear)
2
15
101041
Safety Sign - Notice (2,000 Lb. Capacity)
1
16
101034
Safety sign - Caution (Hay Equipment)
1
17
101122
Safety Sign - Warning (Hi Pressure)
1
18
815151
Backstop Weldment (SSBH-2072 only)
1
19
940009
U-Bolt 5/8" - 11NC x 3" ID x 4"
1
20
2502007
Washer 5/8" Springlock
2
21
2500013
Nut 5/8" - 11NC Full Hex
2
