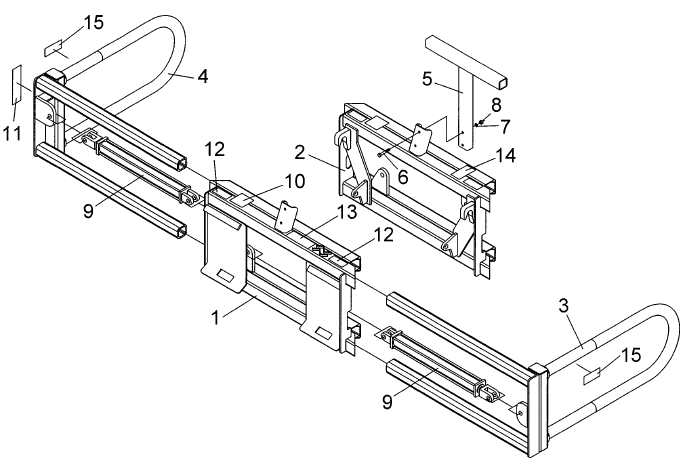

Bale Clamping Attachments GLBS-48D Parts List

1

834201

Main Frame Weldment (SSLBS-48D)

1

2

834211

Main Frame Weldment (GLBS-48D)

1

3

834205

RH Clamp Arm

1

4

834206

LH Clamp Arm

1

5

834198

Backstop Weldment

1

6

2503151

Bolt 1/2"-13NC x 3" Hex Head Gr. 5

2

7

2502002

Washer 1/2" Springlock

2

8

2500003

Nut 1/2"-13NC Full Hex

2

9

2504276

Hydraulic Cylinder 2-1/2 x 24

2

10

101122

Safety Sign - Warning (Hi Pressure)

1

11

101277

Safety Sign - Warning (Read Owner's Manual)

1

12

101297

Safety sign - Warning (Pitch Point)

2

13

101313

Safety Sign - Warning (Lockpins) (SSLBS-48D only)

1

14

101474

Safety Sign - Warning (Lockpins) (GLBS-48D only)

2

15

101027

Safety Sign - Warning (Stand Clear)

2

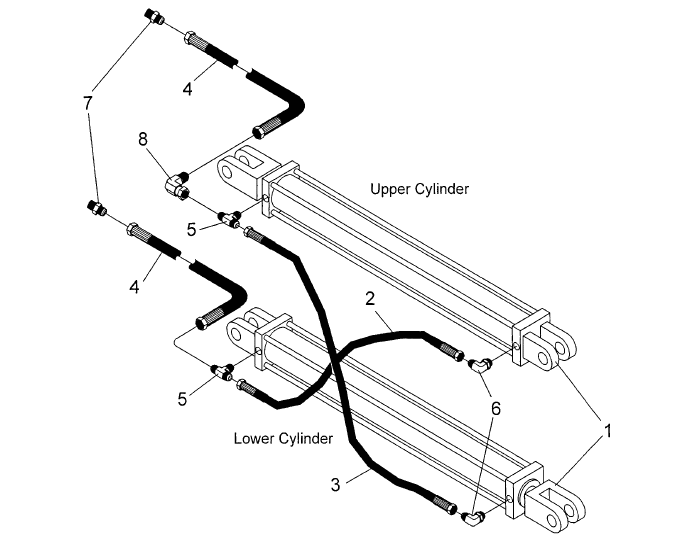

1

2504276

Hydraulic Cylinder 2 1/2 x 24

2

2

2505808

Hydraulic Hose 3/8" ID x 20"

1

3

2505809

Hydraulic Hose 3/8" ID x 35"

1

4

2505810

Hydraulic Hose 3/8" ID x 84"

2

5

2505806

Adjustable Male Tee 3/4" - 16

2

6

2505737

90° Adjustable Elbow 3/4" - 16 ORB (Male) to 3/4" - 16 JIC (Male)

2

7

2505651

Straight Connector 3/4" - 16 JIC (Male) to 3/4" - 16 ORB (Male)

2

8

2505736

90° Swivel Elbow 3/4" - 16 JIC (Female) to 3/4" - 16 JIC (Male)

1
