3-Pt. Bale Spear HS-2200 Parts List
3-Pt. Bale Spear HS-2200 Parts List

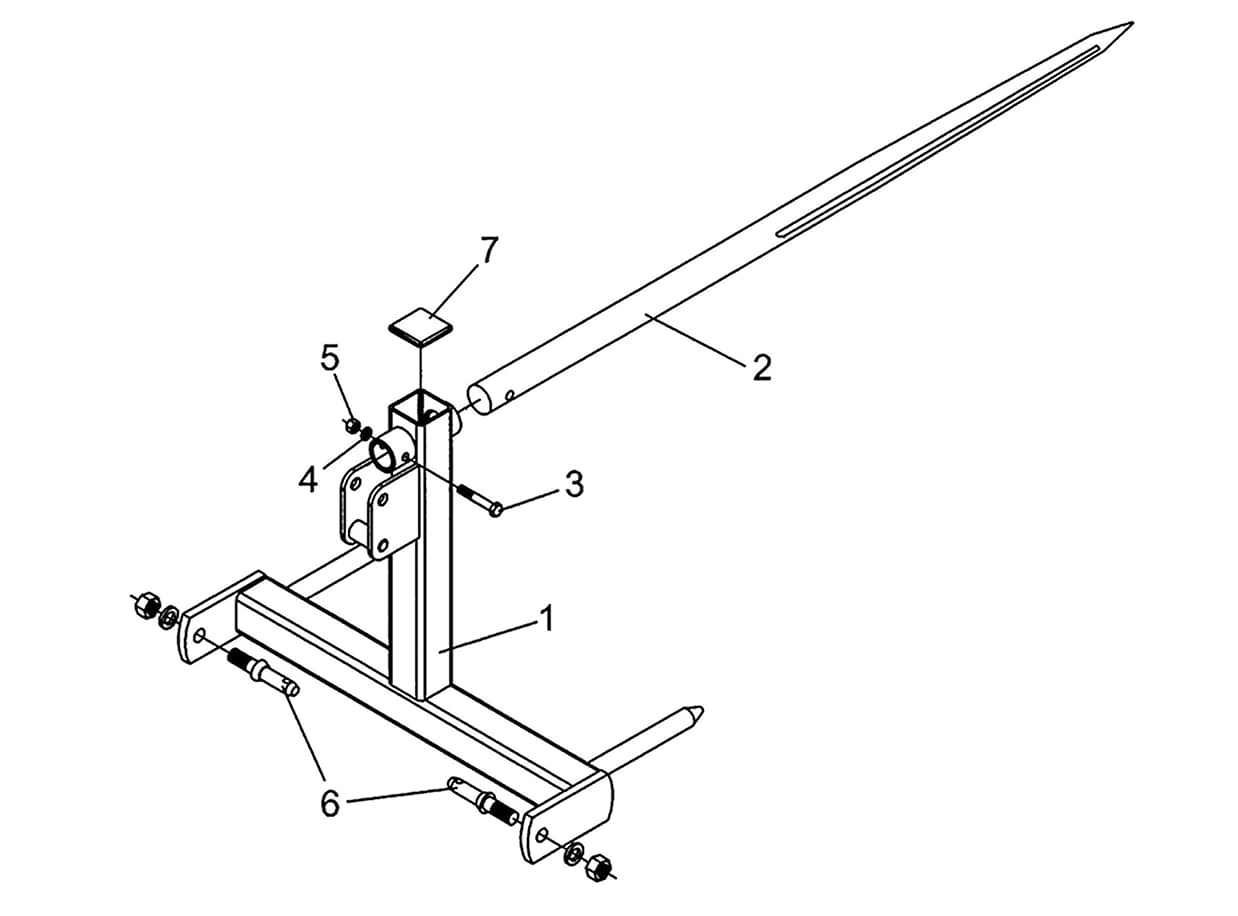

2200 lb Bolt-in 3-pt. Bale Spear
Ref. #
Part #
Description
# Req.
1
832561
Main Frame Weldment (HS-2200)
1
2
830928
Spear, Bolt-In
1
3
2503012
Bolt 1/2"-13NC x 3" Hex Head Gr. 2
1
4
2502002
Washer 1/2" Springlock
1
5
2500003
Nut 1/2"-13NC Full Hex
1
6
590108
Draw Pin, Forged (Cat. I)
2
7
2504308
Cap, Plastic (80mm)
1
N/S
101277
Safety Sign - Warning
1
N/S
862500
Optional Lower Sleeves for Quick Hitch (Cat. I/ll)(pair)
1
N/S
343058
Optional Toplink Bushing for Quick Hitch (Cat. I/II)
1
N/S/
832140
Optional Cat. II Drawpins (pair) 7/8" Thread 1 1/8" Pin N/S
1
