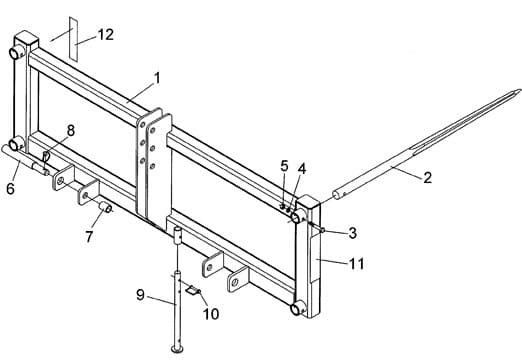

3-Pt. Bale Spear DBH-6000 Parts List
3-Pt. Bale Spear DBH-6000 Parts List
6000lb. Four Bolt-in Square Bale Spears
Ref. #
Part #
Description
# Req.
1
834165
Main Frame Weldment DBH-6000
1
2
830928
Spear, Bolt-in
4
3
2503012
Bolt, 1/2" -13NC x 3.00" Hex Head Gr.2
4
4
2502002
Washer 1/2" Springlock
4
5
2500003
Nut, 1/2"-13NC Full Hex
4
6
830290
Pin, Hitch
2
7
590126
Lift Arm Bushing (AK-58)
2
8
590006
Linch Pin 7/16" (AK-14)
2
9
343430
Stand Rod Weldment
1
10
590194
Lock Pin 5/16" (AK-2907)
1
11
101277
Safety Sign - Warning
1
12
101260
Red Reflective Tape 2" x 9"
2
